AWS CDK で環境ごとにパラメータを変えてデプロイを行う

#IaC#AWS
AWS CDK で環境ごとにパラメータを変えてデプロイを行う

はじめに

本記事では AWS CDK で環境ごとにパラメータを変えてデプロイを行う方法についてまとめます。 実際のPJでは開発環境と本番環境が存在し、各環境でリソースに設定する値が異なる場合がありますが、そういった場合に本記事で紹介する方法が役立つと思います。

手順

プロジェクトの作成はAWS Cloud Development Kit (CDK) の開始方法 | はじめにを参考に行います。

プロジェクトの作成

  • CDK がインストールされていることを確認します
$ cdk --version
2.46.0 (build 5a0595e)
  • 初めて使用するアカウント、リージョンの場合はcdk bootstrap aws://ACCOUNT-NUMBER/REGIONを実行します
$ cdk bootstrap aws://123456789012/ap-northeast-1
  • CDK プロジェクトを作成します 本記事では言語は typescript を使用します
PROJECT_NAME=cdk-demo
mkdir $PROJECT_NAME
cd $PROJECT_NAME
cdk init --language typescript

cdk initが完了すると、以下ディレクトリ、ファイルが作成されます。

.
├── bin
│   └── cdk-demo.ts
├── cdk.json
├── jest.config.js
├── lib
│   └── cdk-demo-stack.ts
├── node_modules
│   ├── abab
│   ├── ...
├── package.json
├── package-lock.json
├── README.md
├── test
│   └── cdk-demo.test.ts
└── tsconfig.json

リソースの作成

例として、CodeBuildを作成します。 cdk.json のcontextブロックに環境ごとに異なる値を追加します。

{
 "app": "npx ts-node --prefer-ts-exts bin/cdk-demo.ts",
 "watch": {
 "include": [
 "**"
 ],
 "exclude": [
 "README.md",
 "cdk*.json",
 "**/*.d.ts",
 "**/*.js",
 "tsconfig.json",
 "package*.json",
 "yarn.lock",
 "node_modules",
 "test"
 ]
 },
 "context": {
 "@aws-cdk/aws-apigateway:usagePlanKeyOrderInsensitiveId": true,
 "@aws-cdk/core:stackRelativeExports": true,
 "@aws-cdk/aws-rds:lowercaseDbIdentifier": true,
 "@aws-cdk/aws-lambda:recognizeVersionProps": true,
 "@aws-cdk/aws-lambda:recognizeLayerVersion": true,
 "@aws-cdk/aws-cloudfront:defaultSecurityPolicyTLSv1.2_2021": true,
 "@aws-cdk-containers/ecs-service-extensions:enableDefaultLogDriver": true,
 "@aws-cdk/aws-ec2:uniqueImdsv2TemplateName": true,
 "@aws-cdk/core:checkSecretUsage": true,
 "@aws-cdk/aws-iam:minimizePolicies": true,
 "@aws-cdk/aws-ecs:arnFormatIncludesClusterName": true,
 "@aws-cdk/core:validateSnapshotRemovalPolicy": true,
 "@aws-cdk/aws-codepipeline:crossAccountKeyAliasStackSafeResourceName": true,
 "@aws-cdk/aws-s3:createDefaultLoggingPolicy": true,
 "@aws-cdk/aws-sns-subscriptions:restrictSqsDescryption": true,
 "@aws-cdk/aws-apigateway:disableCloudWatchRole": true,
 "@aws-cdk/core:enablePartitionLiterals": true,
 "@aws-cdk/core:target-partitions": [
 "aws",
 "aws-cn"
 ],
 "dev": {
 "branchName": "develop"
 },
 "prod": {
 "branchName": "production"
 }
 }
}

lib/cdk-demo-stack.ts を編集します。

import * as cdk from 'aws-cdk-lib';
import { Construct } from 'constructs';
import * as codebuild from 'aws-cdk-lib/aws-codebuild';
import * as iam from 'aws-cdk-lib/aws-iam';

export class CdkDemoStack extends cdk.Stack {
 constructor(scope: Construct, id: string, props?: cdk.StackProps) {
 super(scope, id, props);
 const env = this.node.tryGetContext('environment')
 const valArray = this.node.tryGetContext(env)

 const codeBuildServiceRole = new iam.Role(this, 'CodeBuildServiceRole', {
 assumedBy: new iam.ServicePrincipal('codebuild.amazonaws.com'),
 path: '/',
 inlinePolicies: {
 codeBuildServicePolicies: new iam.PolicyDocument({
 statements: [
 new iam.PolicyStatement({
 effect: iam.Effect.ALLOW,
 actions: [
 'ecr:*',
 ],
 resources: [
 '*',
 ],
 }),
 ],
 }),
 },
 });

 new codebuild.Project(this, 'CreateProject', {
 projectName: 'example',
 source: codebuild.Source.gitHubEnterprise({
 httpsCloneUrl: "https://github.xxx.git",
 }),
 role: codeBuildServiceRole,
 buildSpec: codebuild.BuildSpec.fromObject({
 version: '0.2',
 phases: {
 install: {
 'runtime-versions': {
 python: "3.8"
 },
 },
 build: {
 commands: [
 'echo test',
 ]
 },
 },
 }),
 environment: {
 buildImage: codebuild.LinuxBuildImage.STANDARD_5_0,
 environmentVariables: {
 ENV: {
 type: codebuild.BuildEnvironmentVariableType.PLAINTEXT,
 value: env,
 }
 },
 },
 });
 }
}

以下部分で実行時に指定した”environment”パラメータを受け取るようにしています。

const env = this.node.tryGetContext('environment')
const valArray = this.node.tryGetContext(env)

こちらをデプロイします。 cdk diffで作成、変更されるリソースを事前に確認します。-cオプションを使用して、KEY=VALUE形式でコンテキストの値を追加します。

$ cdk diff -c environment=dev
Stack CdkDemoStack
current credentials could not be used to assume 'arn:aws:iam::155385059623:role/cdk-hnb659fds-lookup-role-155385059623-ap-northeast-1', but are for the right account. Proceeding anyway.
(To get rid of this warning, please upgrade to bootstrap version >= 8)
current credentials could not be used to assume 'arn:aws:iam::155385059623:role/cdk-hnb659fds-deploy-role-155385059623-ap-northeast-1', but are for the right account. Proceeding anyway.
IAM Statement Changes
┌───┬─────────────────────────────────────────────┬────────┬─────────────────────────────────────────────┬──────────────────────────────────────────────┬───────────┐
│ │ Resource │ Effect │ Action │ Principal │ Condition │
├───┼─────────────────────────────────────────────┼────────┼─────────────────────────────────────────────┼──────────────────────────────────────────────┼───────────┤
│ + │ ${CodeBuildServiceRole.Arn} │ Allow │ sts:AssumeRole │ Service:codebuild.amazonaws.com │ │
├───┼─────────────────────────────────────────────┼────────┼─────────────────────────────────────────────┼──────────────────────────────────────────────┼───────────┤
│ + │ * │ Allow │ ecr:* │ AWS:${CodeBuildServiceRole} │ │
├───┼─────────────────────────────────────────────┼────────┼─────────────────────────────────────────────┼──────────────────────────────────────────────┼───────────┤
│ + │ arn:${AWS::Partition}:codebuild:${AWS::Regi │ Allow │ codebuild:BatchPutCodeCoverages │ AWS:${CodeBuildServiceRole} │ │
│ │ on}:${AWS::AccountId}:report-group/${Create │ │ codebuild:BatchPutTestCases │ │ │
│ │ Project3E2616D7}-* │ │ codebuild:CreateReport │ │ │
│ │ │ │ codebuild:CreateReportGroup │ │ │
│ │ │ │ codebuild:UpdateReport │ │ │
├───┼─────────────────────────────────────────────┼────────┼─────────────────────────────────────────────┼──────────────────────────────────────────────┼───────────┤
│ + │ arn:${AWS::Partition}:logs:${AWS::Region}:$ │ Allow │ logs:CreateLogGroup │ AWS:${CodeBuildServiceRole} │ │
│ │ {AWS::AccountId}:log-group:/aws/codebuild/$ │ │ logs:CreateLogStream │ │ │
│ │ {CreateProject3E2616D7} │ │ logs:PutLogEvents │ │ │
│ │ arn:${AWS::Partition}:logs:${AWS::Region}:$ │ │ │ │ │
│ │ {AWS::AccountId}:log-group:/aws/codebuild/$ │ │ │ │ │
│ │ {CreateProject3E2616D7}:* │ │ │ │ │
└───┴─────────────────────────────────────────────┴────────┴─────────────────────────────────────────────┴──────────────────────────────────────────────┴───────────┘
(NOTE: There may be security-related changes not in this list. See https://github.com/aws/aws-cdk/issues/1299)

Parameters
[+] Parameter BootstrapVersion BootstrapVersion: {"Type":"AWS::SSM::Parameter::Value","Default":"/cdk-bootstrap/hnb659fds/version","Description":"Version of the CDK Bootstrap resources in this environment, automatically retrieved from SSM Parameter Store. [cdk:skip]"}

Conditions
[+] Condition CDKMetadata/Condition CDKMetadataAvailable: {"Fn::Or":[{"Fn::Or":[{"Fn::Equals":[{"Ref":"AWS::Region"},"af-south-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"ap-east-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"ap-northeast-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"ap-northeast-2"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"ap-south-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"ap-southeast-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"ap-southeast-2"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"ca-central-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"cn-north-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"cn-northwest-1"]}]},{"Fn::Or":[{"Fn::Equals":[{"Ref":"AWS::Region"},"eu-central-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"eu-north-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"eu-south-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"eu-west-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"eu-west-2"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"eu-west-3"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"me-south-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"sa-east-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"us-east-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"us-east-2"]}]},{"Fn::Or":[{"Fn::Equals":[{"Ref":"AWS::Region"},"us-west-1"]},{"Fn::Equals":[{"Ref":"AWS::Region"},"us-west-2"]}]}]}

Resources
[+] AWS::IAM::Role CodeBuildServiceRole CodeBuildServiceRoleA9C1F6A8
[+] AWS::IAM::Policy CodeBuildServiceRole/DefaultPolicy CodeBuildServiceRoleDefaultPolicyC1569022
[+] AWS::CodeBuild::Project CreateProject CreateProject3E2616D7

Other Changes
[+] Unknown Rules: {"CheckBootstrapVersion":{"Assertions":[{"Assert":{"Fn::Not":[{"Fn::Contains":[["1","2","3","4","5"],{"Ref":"BootstrapVersion"}]}]},"AssertDescription":"CDK bootstrap stack version 6 required. Please run 'cdk bootstrap' with a recent version of the CDK CLI."}]}}

確認して問題なければcdk deployを実行します。

$ cdk deploy -c environment=dev
(省略)

 ✅ CdkDemoStack

✨ Deployment time: 114.33s

Stack ARN:
arn:aws:cloudformation:ap-northeast-1:123456789012:stack/CdkDemoStack/9977fe20-658f-11ed-84cf-0e3fab9bc4d7

✨ Total time: 131.24s

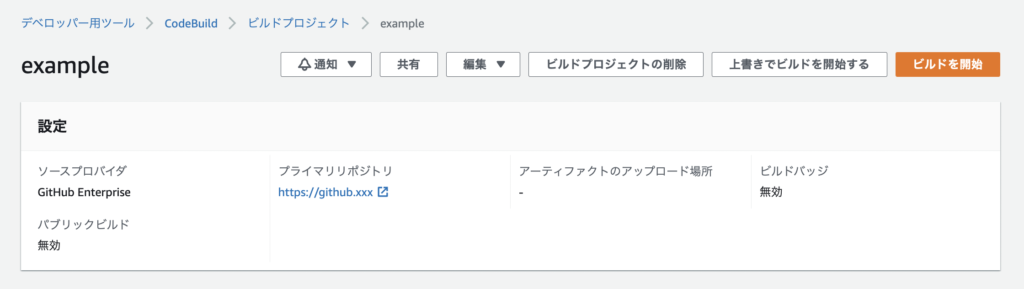

リソースが期待通りに作成できていることを確認します。

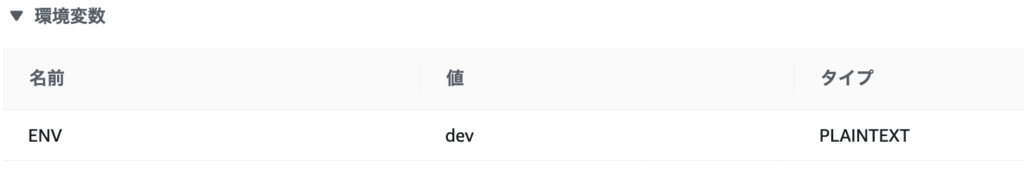

実行時に”-c”オプションで指定した通り、環境ごとの値を環境変数に設定できています。

おわりに

本記事では AWS CDK でプロジェクト作成~リソースを作成する流れをまとめました。 この記事がどなたかの参考になれば幸いです。
